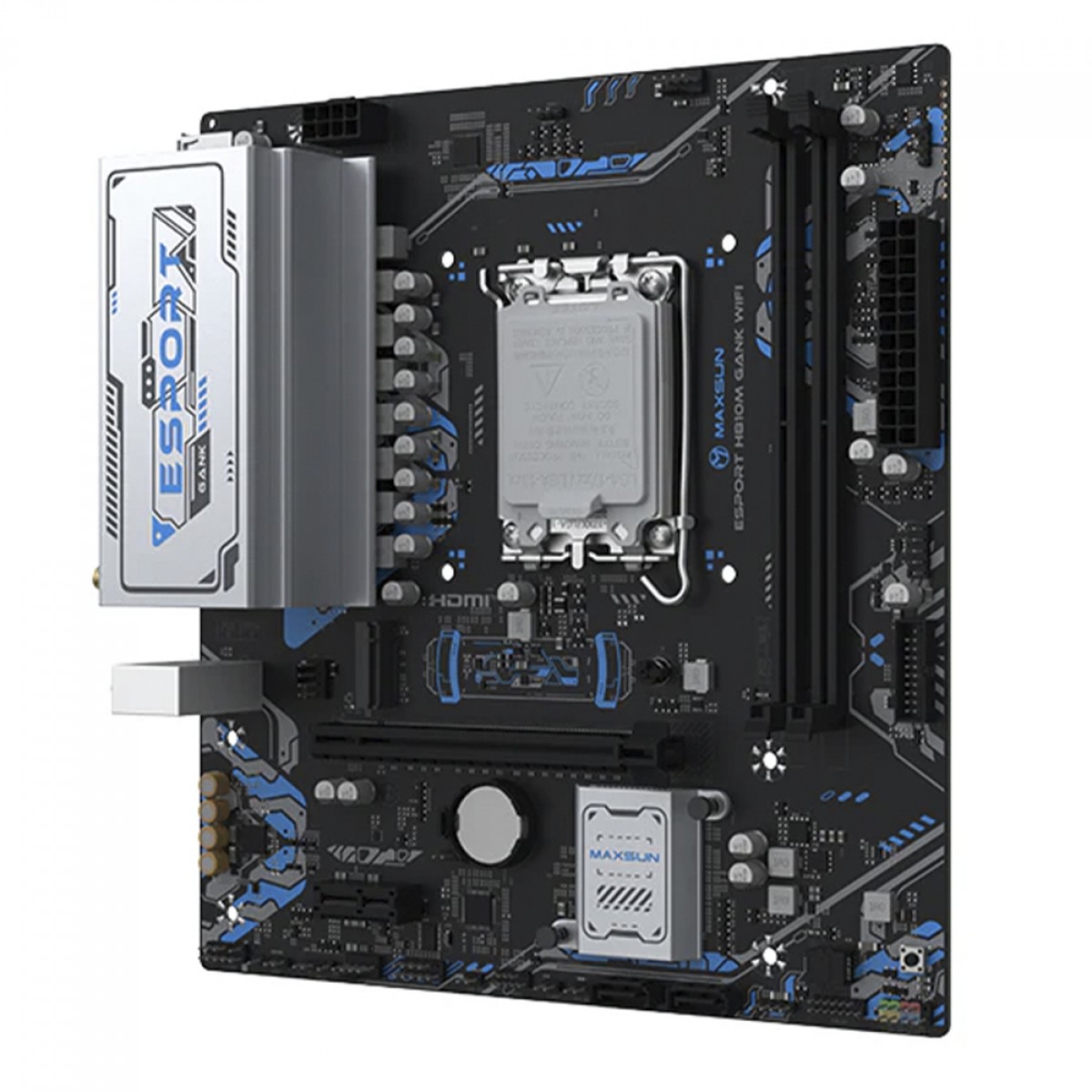

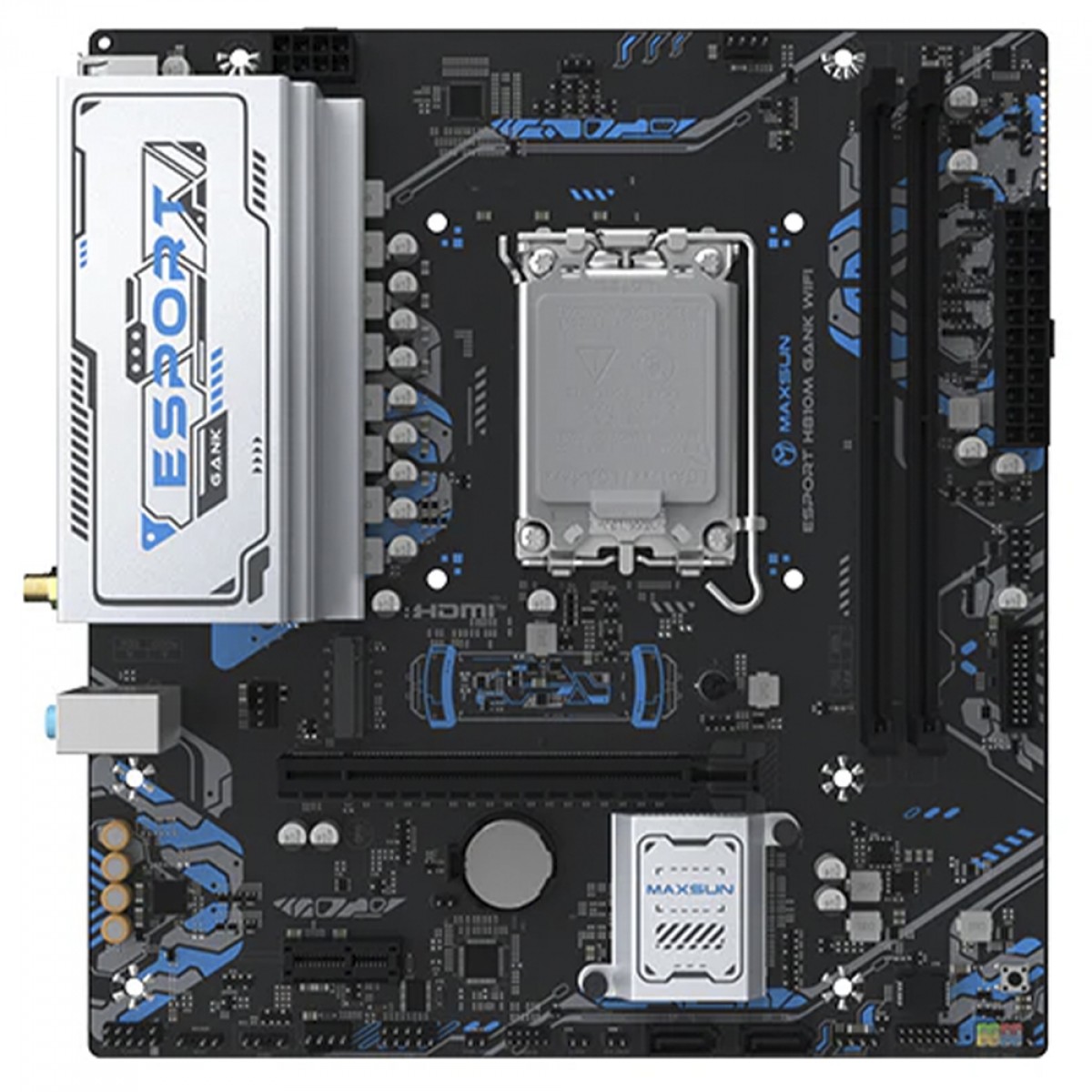

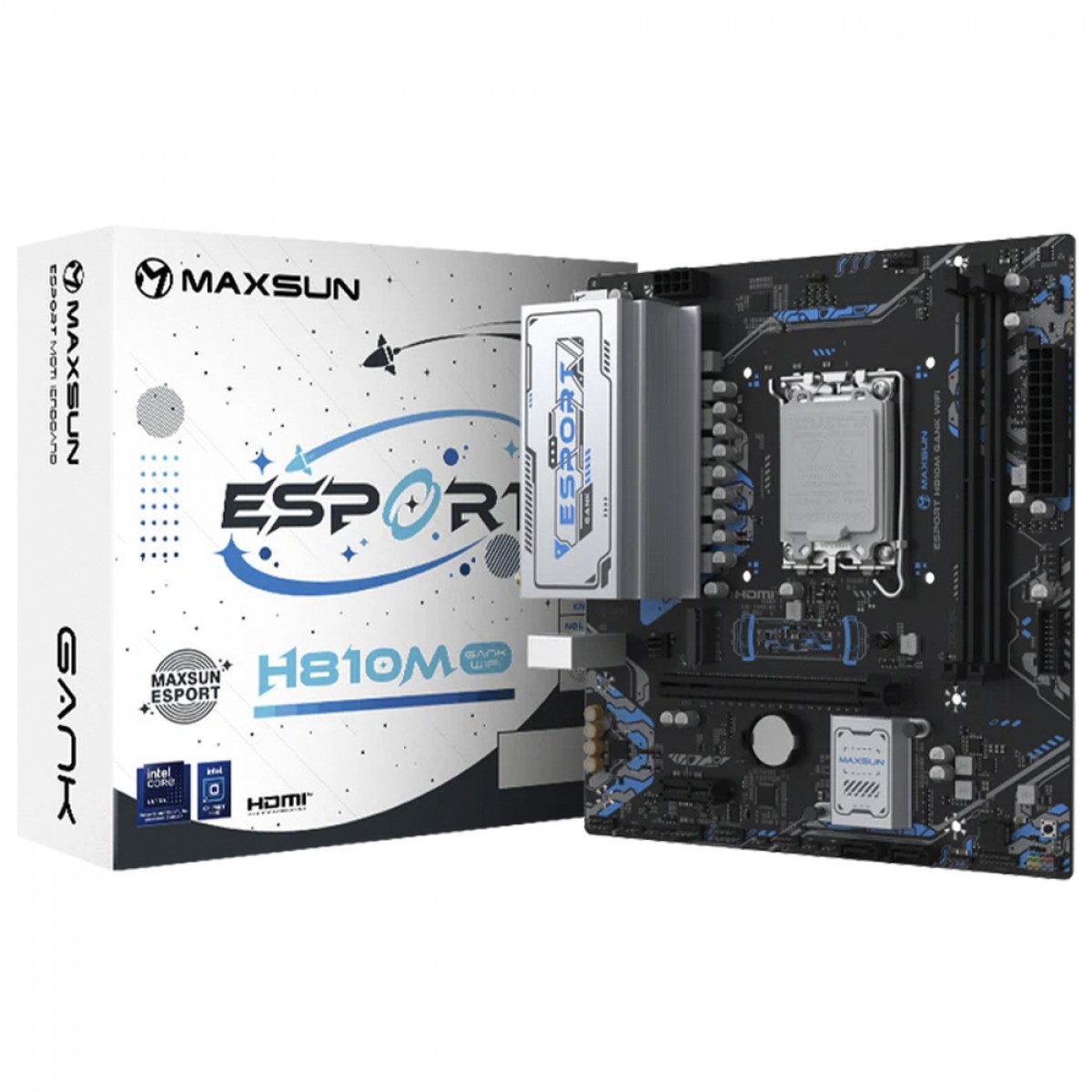

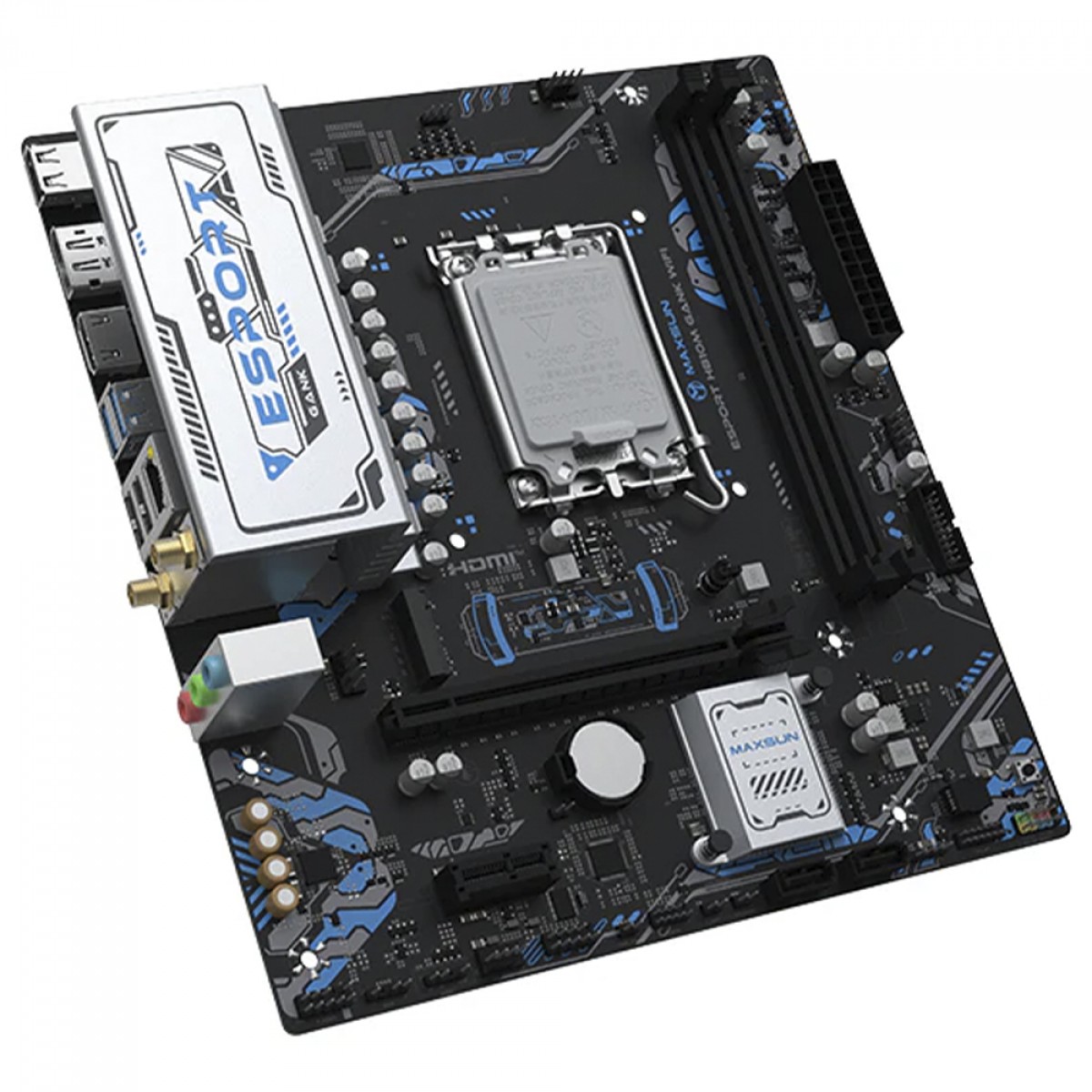

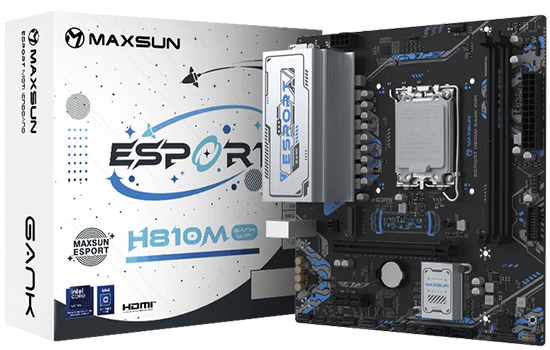

Placa Mãe Maxsun eSport H810M Gank WiFi, Chipset H810, Intel LGA 1851, mATX, DDR5

Marca:
Maxsun

Modelo:
MS-eSport H810M GANK WIFI

Motherboard Size:
M-ATX (225 x 205mm)

CPU Socket:
Intel LGA1851, compatible with Intel® Core™ Ultra processors

Chipset:
Intel® H810

Memory:
2 x DIMM DDR5 slots, supporting up to 96GB in total
Supports dual-channel memory technology
Supports memory XMP
Memory Speeds: 6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz

Display:
1 x HDMI 2.0 (up to 4K @60Hz)
1 x DisplayPort 1.2 (up to 4K @60Hz)

Expansion Slots:
1 x PCIe 5.0 x16 slot (supports PCIe 5.0 x16 mode)
1 x PCIe x1 slot (supports PCIe 4.0 x1 mode)

Audio:
Integrated Realtek ALC897 Audio Codec

Network:
Integrated Realtek RTL8111M Ethernet LAN
Onboard Intel® AX101 Wi-Fi card supporting Wi-Fi 6 and Bluetooth 5.2

Storage:
1 x M.2 slot (supports PCIe 4.0 x4/x2 mode, supports 2280 length)
2 x SATA 6Gb/s ports

USB:
Onboard:
1 x USB 5G 19Pin header (supports 2 additional USB 5G ports)
1 x USB 2.0 9Pin header (supports 2 additional USB 2.0 ports)
Rear Panel:
2 x USB 5G Type-A ports
3 x USB 2.0 Type-A ports

Other Parameters:
1 x 24 Pin ATX power connector
1 x 8 Pin +12V power connector
2 x 3 Pin ARGB headers
1 x 4 Pin NRGB header
1 x COM port header
1 x CLR CMOS quick button
1 x 4 Pin CPU fan header
2 x 4 Pin chassis fan headers
