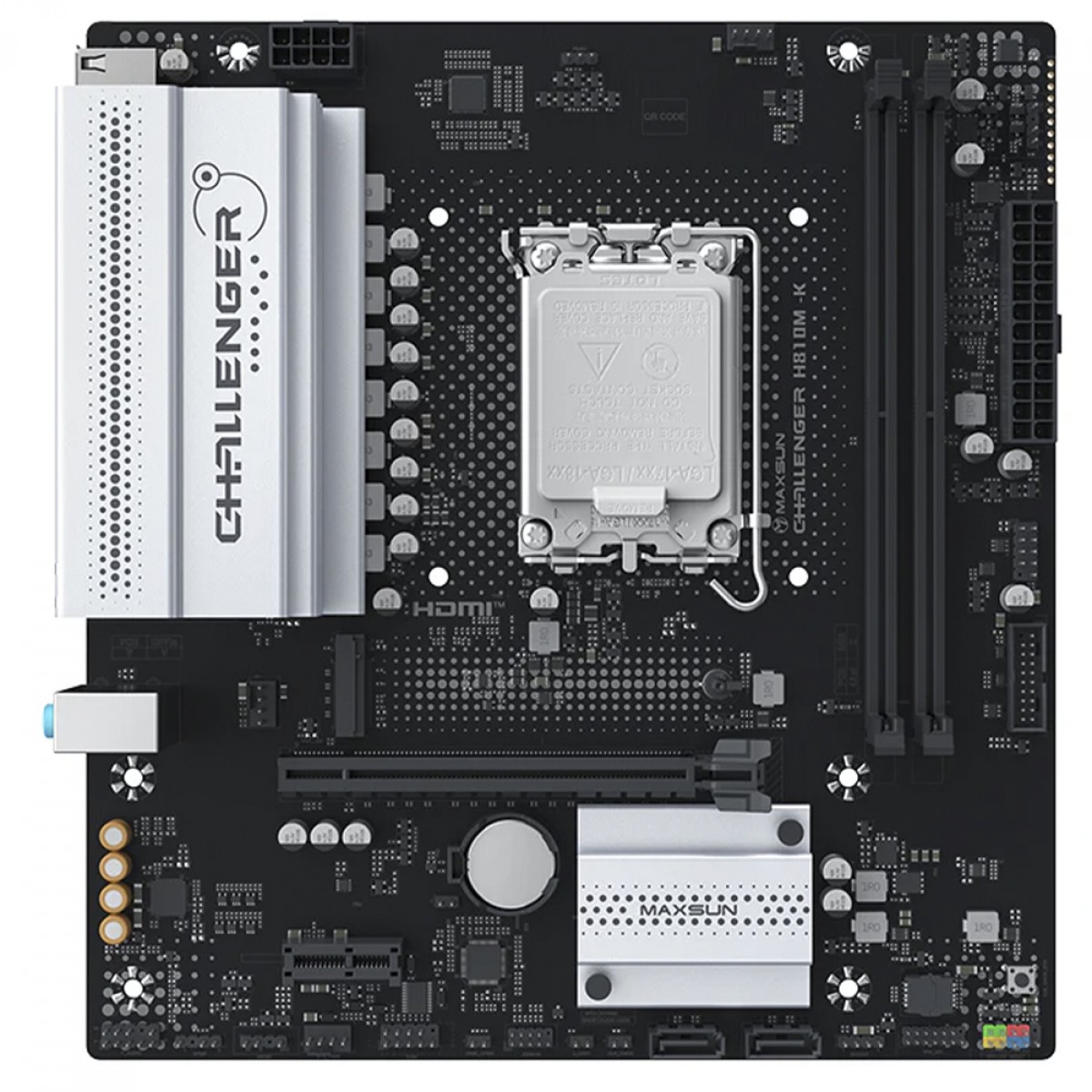

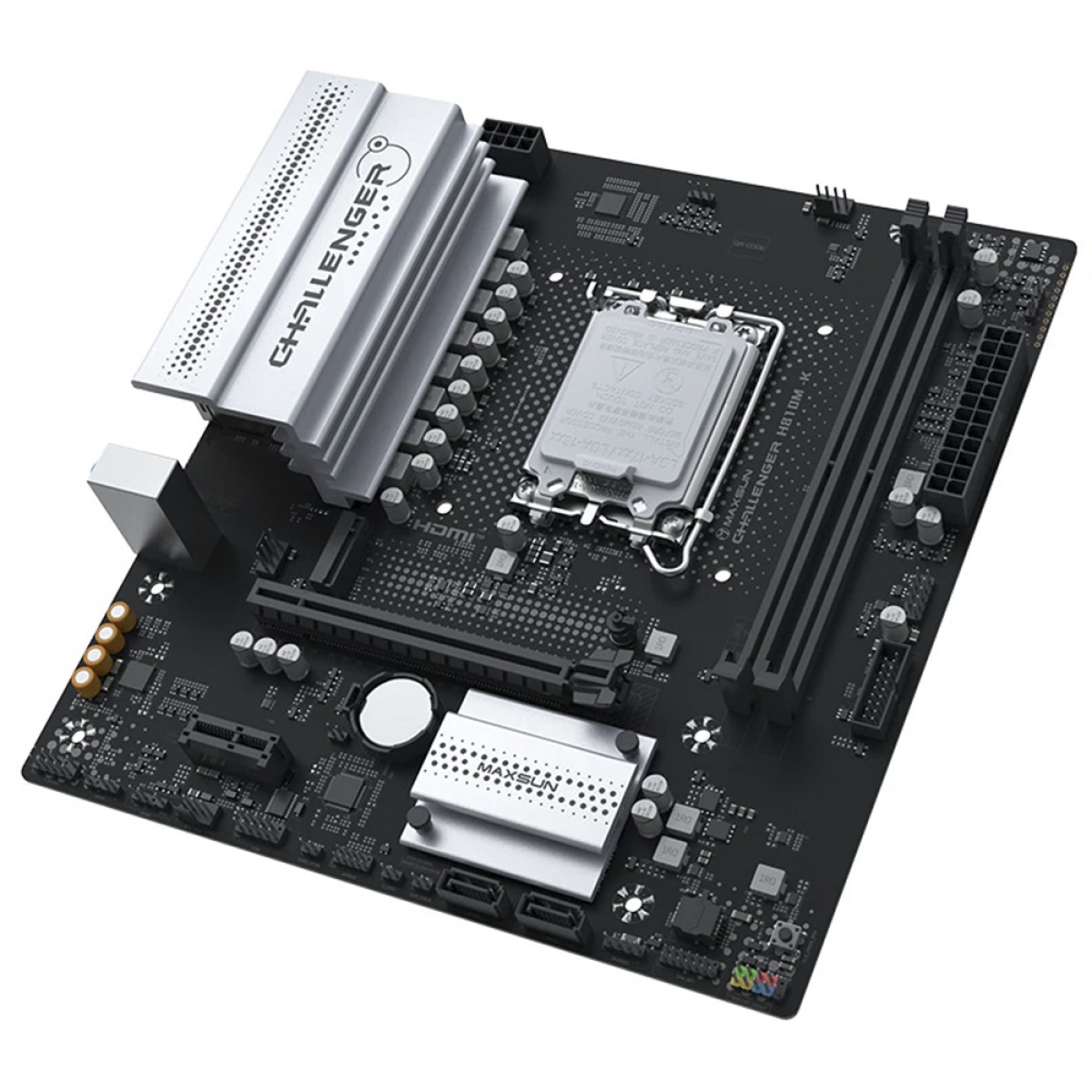

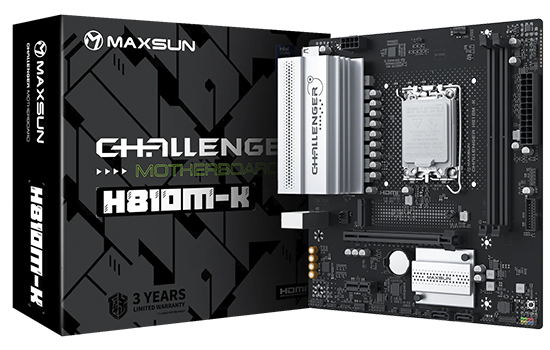

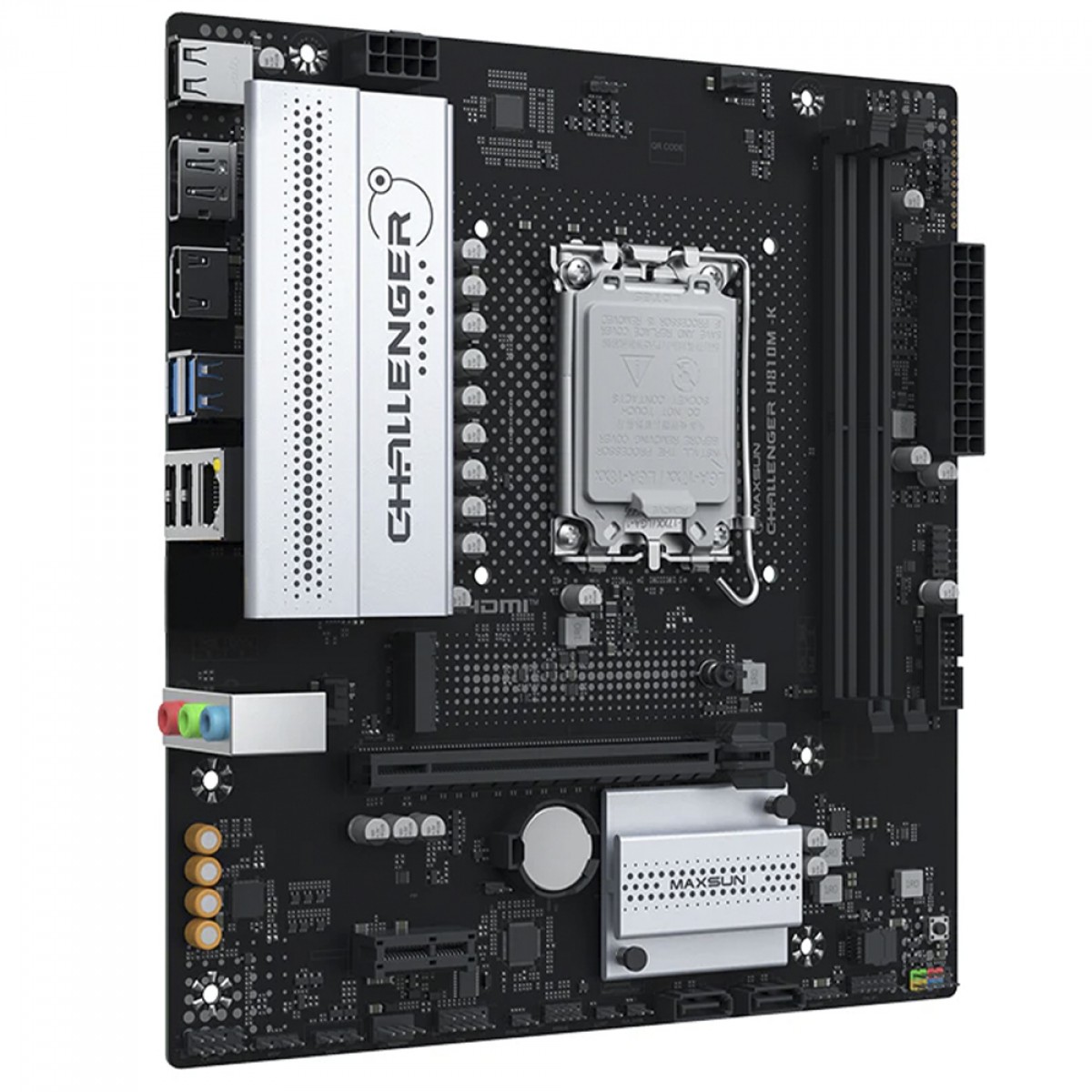

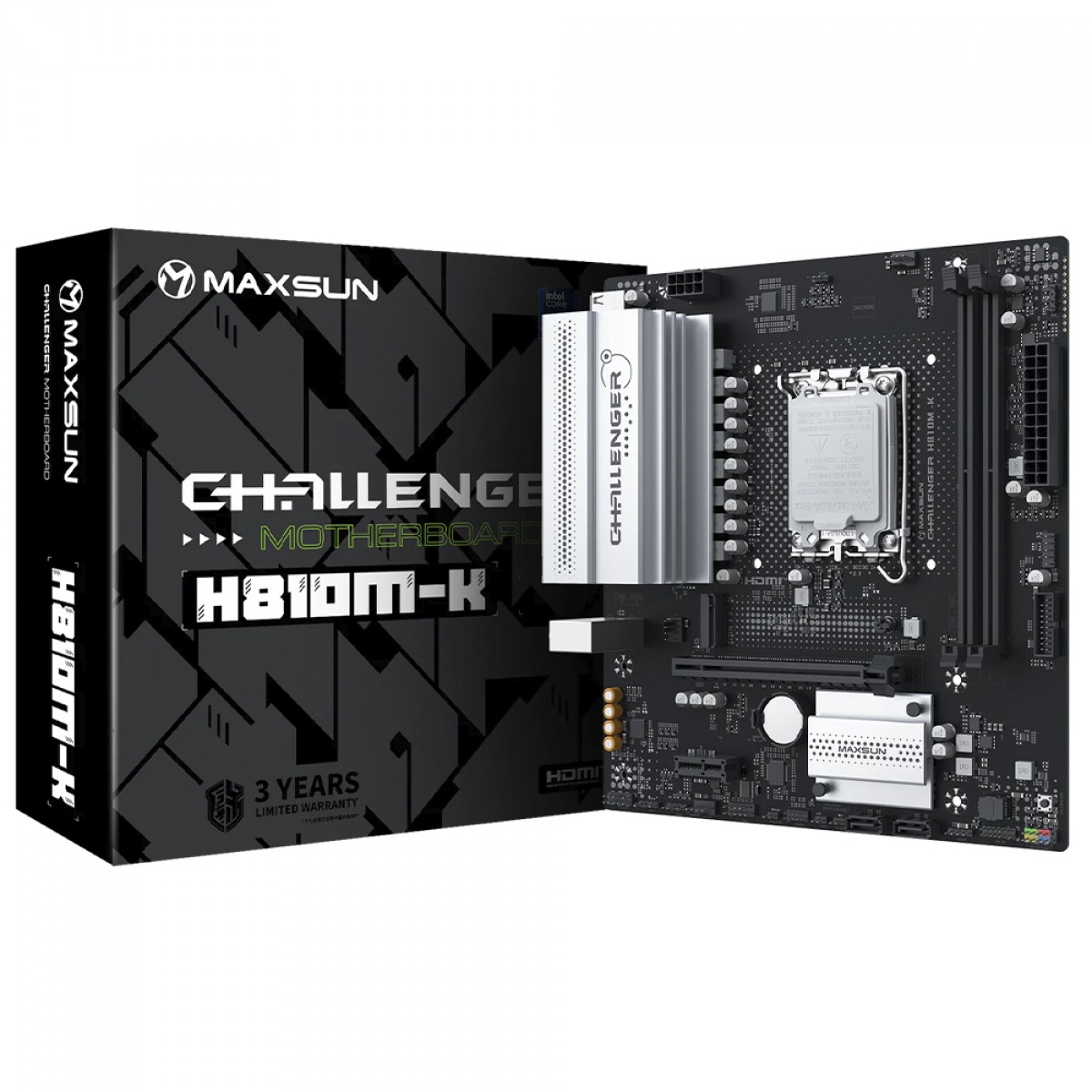

Placa Mãe Maxsun Challenger H810M-K, Chipset H810, Intel LGA 1851, mATX, DDR5

Marca:
Maxsun

Modelo:
MS-Challenger H810M-K

Form Factor:
M-ATX (230 × 210mm)

CPU Socket
Intel® LGA1851 socket, compatible with Intel® Core™ Ultra processors

Chipset:
Intel® H810 chipset

Memory:
2 x DDR5 DIMM slots, up to 96GB supported
Supports XMP technology
Supports dual-channel memory architecture
Supports memory frequencies of 6400/6200/6000/5800/5600/5400/5200/5000/4800MHz

Display Outputs
1 x HDMI™ 2.0 port, supports up to 4K@60Hz output
1 x DP 1.2 port, supports up to 4K@60Hz output

Expansion Slots
1 x PCIe x16 slot (supports PCIe 5.0 x16)
1 x PCIe x1 slot (supports PCle 4.0 x1)

Audio:
Integrated REALTEK ALC897 audio codec

Networking:
Integrated REALTEK RTL8111M network chip
1 x M.2 E-Key 2230 port, supports PCIe; USB; CNVI protocol

Storage:
1 x M.2 slot, supports PCIe 4.0 x4/x2 mode, 2280 length
2 x SATA 6Gb/s ports

USB Ports
Onboard USB:
1 x USB 5G 19-pin header (supports 2 additional USB 5G ports)
1 x USB 2.0 9-pin header (supports 2 additional USB 2.0 ports)

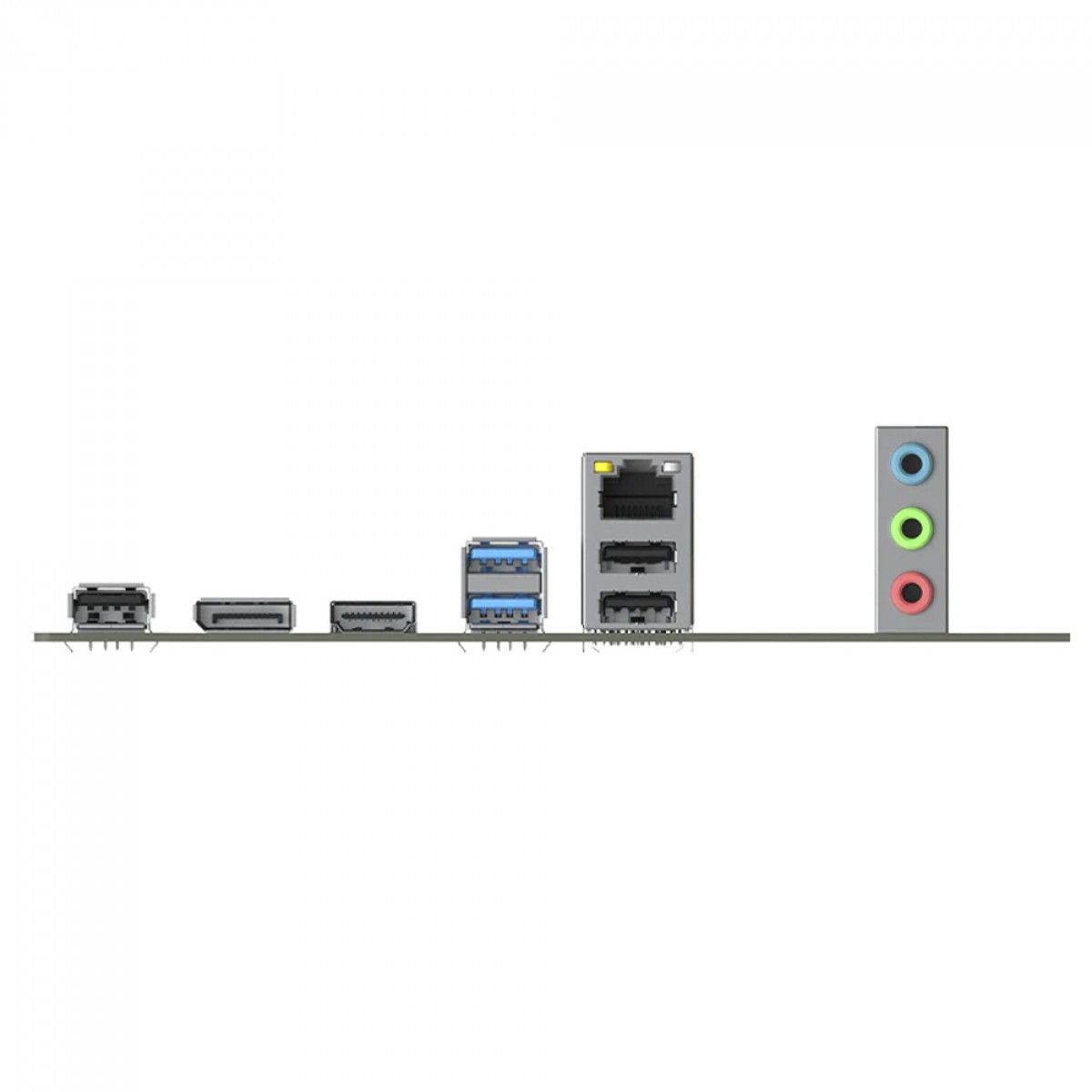

Rear USB:
2 x USB 5G Type-A ports
3 x USB 2.0 Type-A ports

Other Features:
1 x 24-pin ATX power connector
1 x 8-pin +12V power connector
2 x 3-pin ARGB headers
1 x 4-pin NRGB header
1 x COM port header
CLR_CMOS shortcut button
1 x 4-pin CPU fan header
2 x 4-pin chassis fan headers
