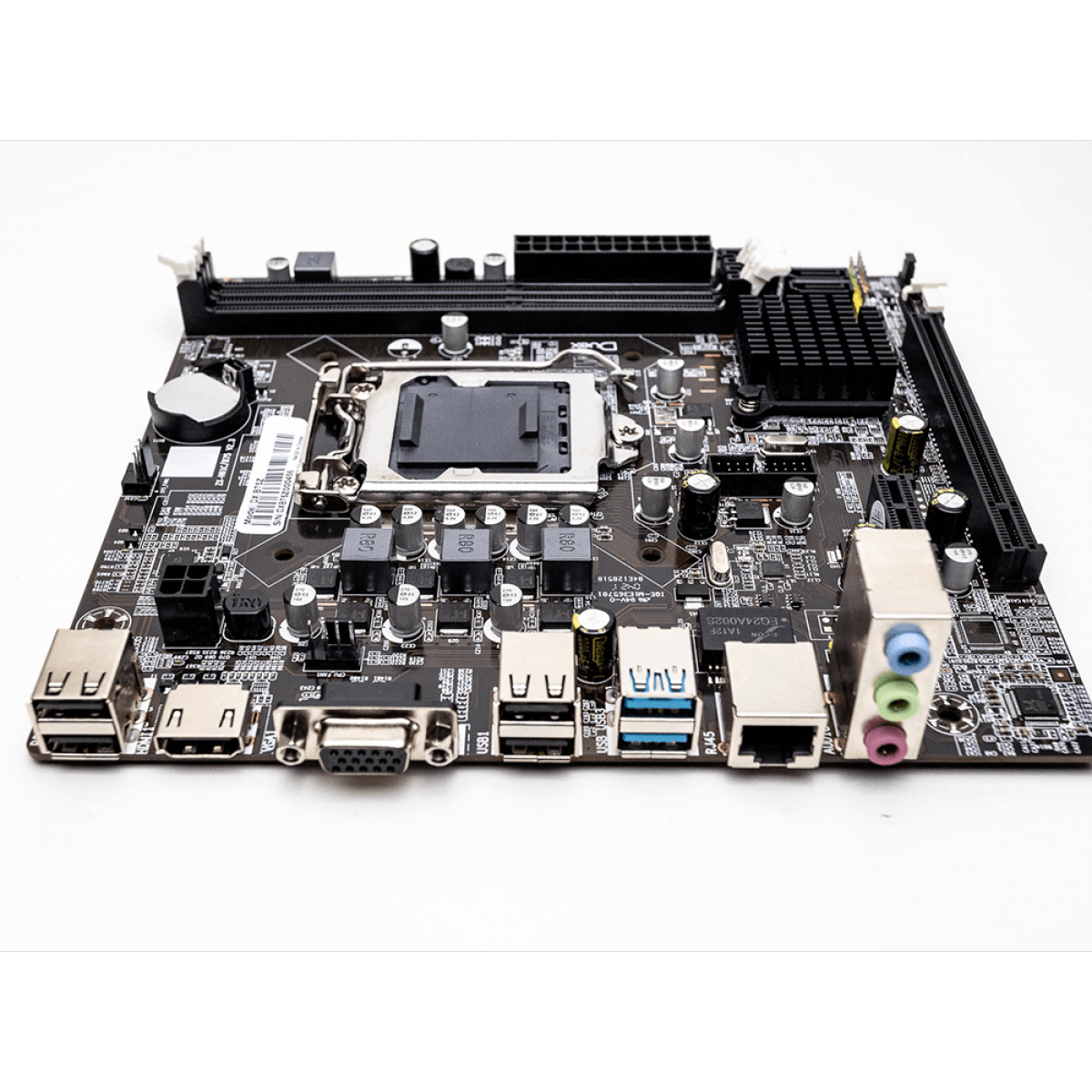

Placa Mãe Duex DX B75Z, Chipset B75, Intel LGA 1155, MATX, DDR3, DX B75Z

Marca:
Duex

Modelo:
DX B75Z

Suporte de Processamento:
Supports Intel® Socket 1155 Core™ i7/ i5/ i3 processors
Chipset: Intel® H61 （ or B75）

Suporte de Memória:
Support Dual channel DDR3 1333/1066 SDRAM (8GB Max)
2 x DDR3 DIMMs (240 pin/ 1.5V)

LAN:
Spport Realtek® 10/100 Mbps (Gigabit optional)

Aúdio:
Chip integrated by Realtek® ALC662

Slot:
1 x PCI Express x16 Slot
1 x PCI Express x1 Slot

Armazenamento:
4 x SATA port

Portas I/O Internas:
1 x 24-pin ATX Power Connetor
1 x 4-pin ATX 12V Power Connetor
2 x USB connector support additional 4 USB ports
1 x LPC_DEBUG connector
1 x Front panel audio connector
1 x System Panel connector

Portas I/O Traseiras:
1 x USB keyboard
1 x USB mouse
1 x VGA
1 x HDMI
4 x USB 2.0 (2 x USB 2.0,2 x USB 3.0 for B75 )
1 x LAN(RJ45) Port
3 x Audio jack

BIOS:
EFI BIOS

Fator de Forma:
Micro ATX  - 190*170 mm

Acessórios:
1 x Driver CD
1 x User Manual
1 x I/O Backboard
1 x SATA cable
