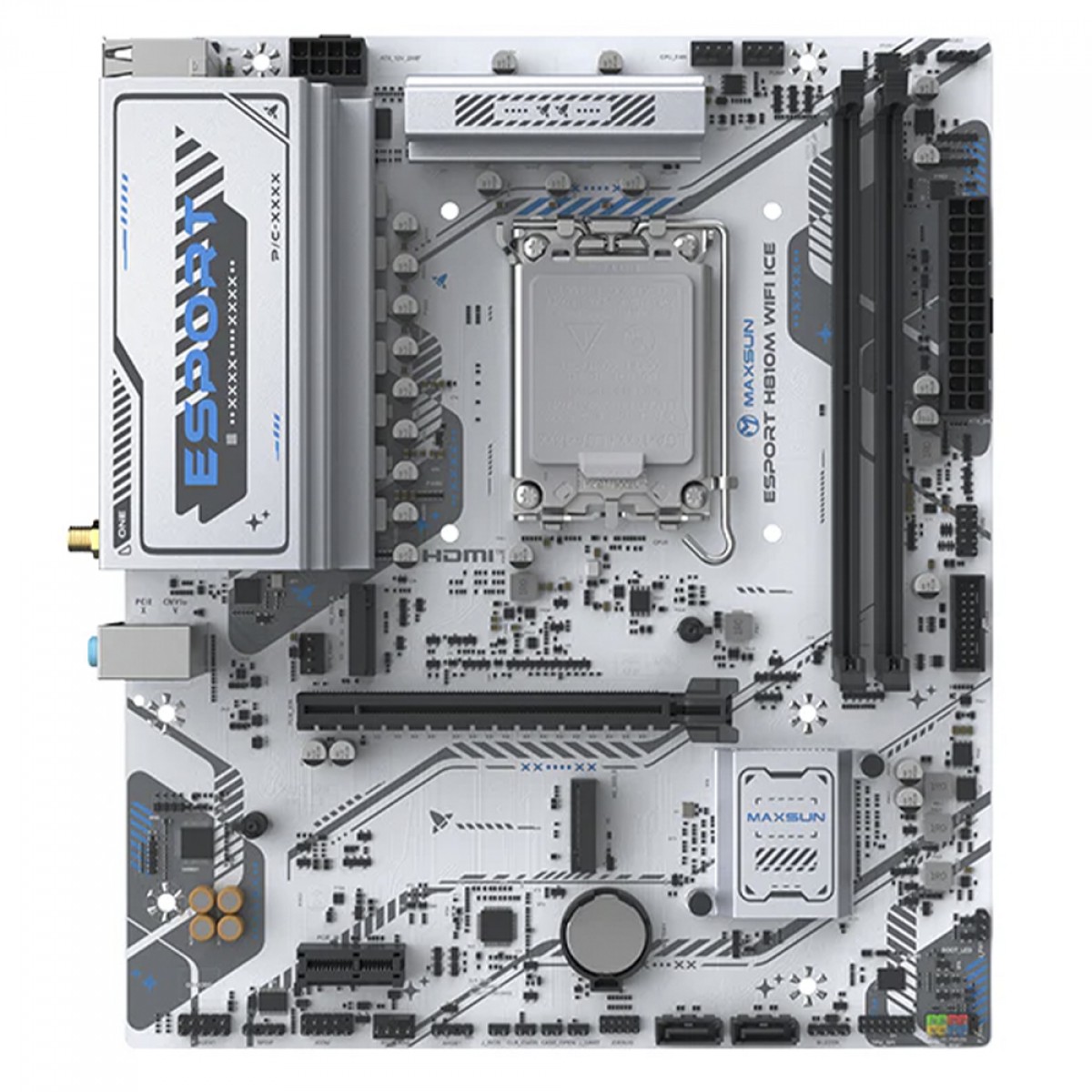

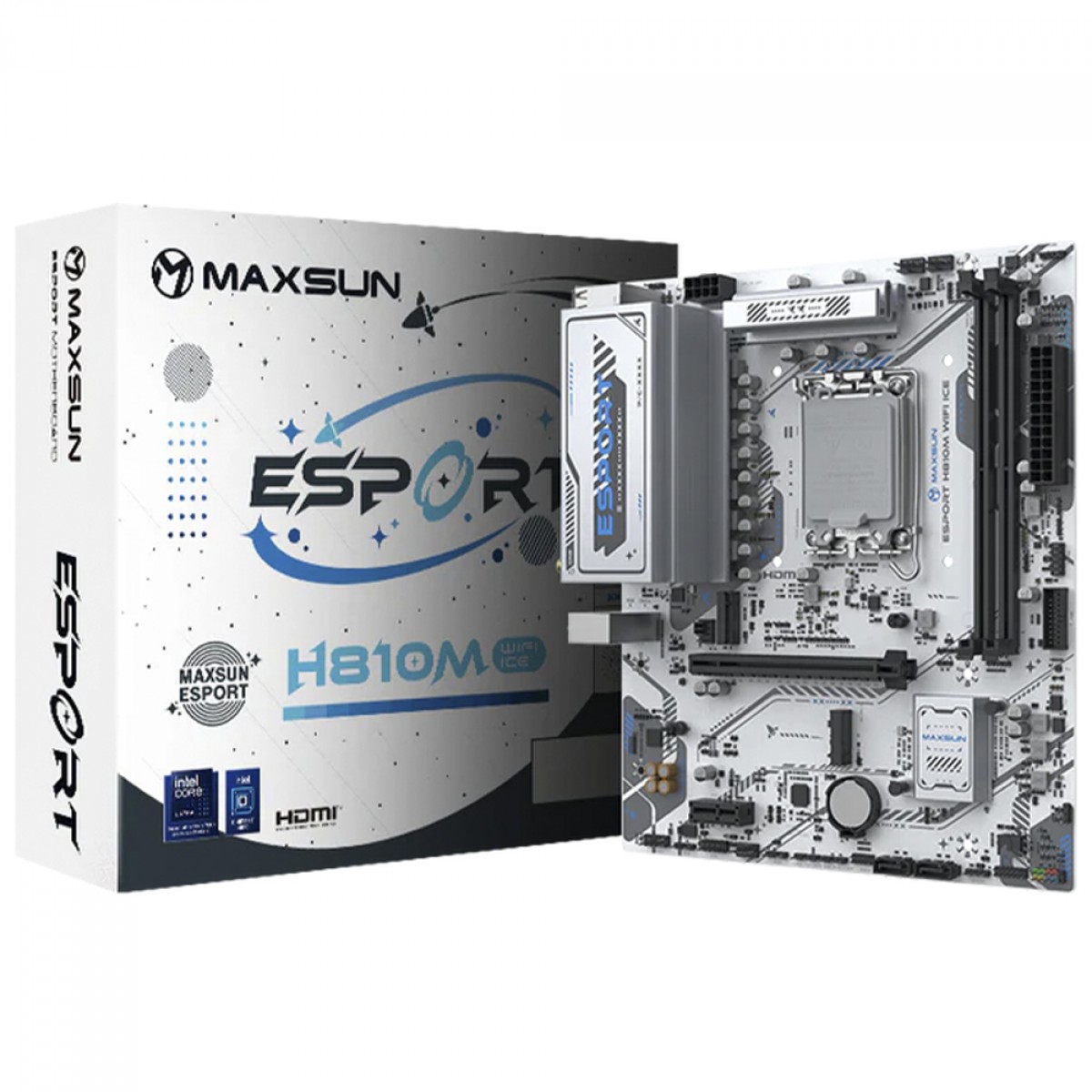

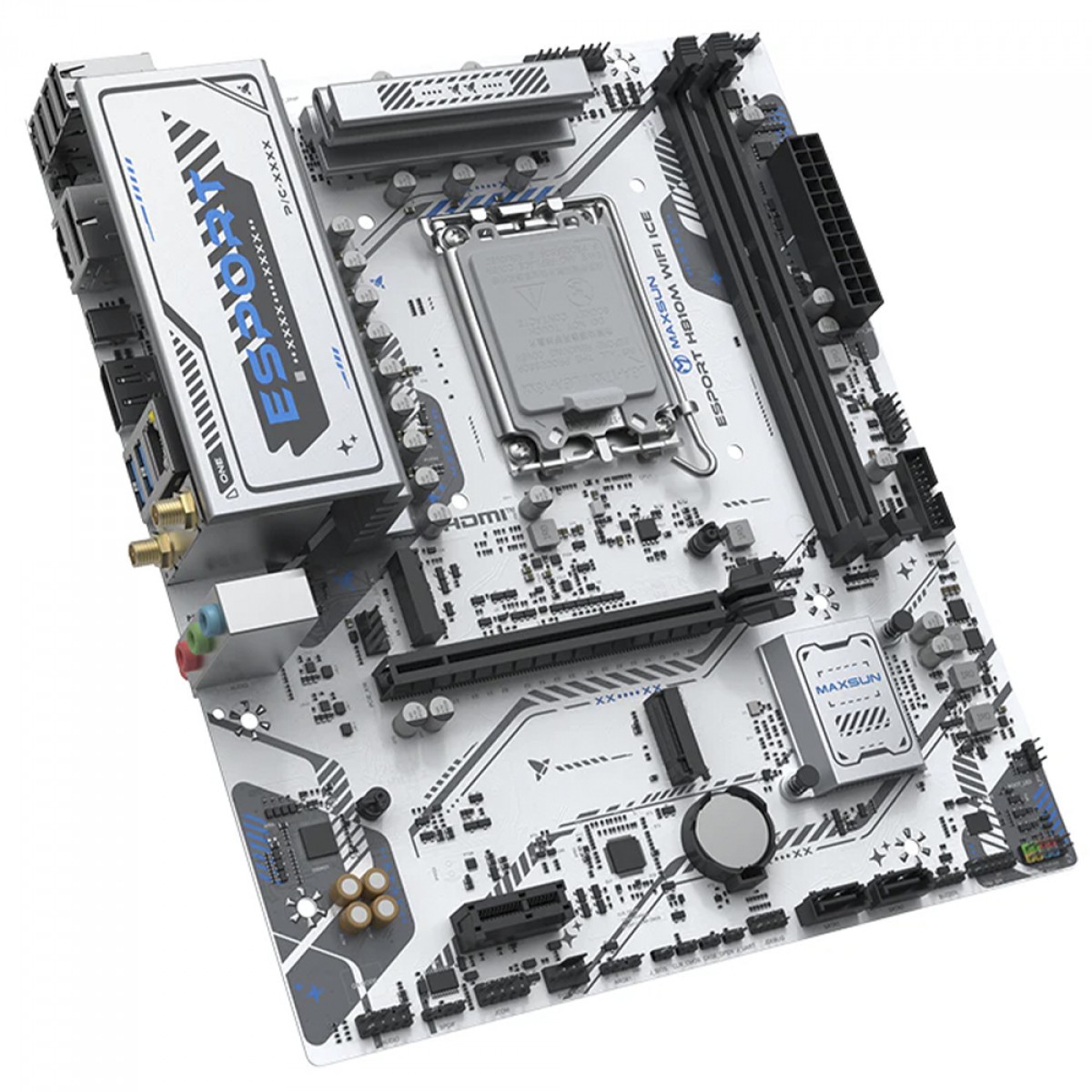

Placa Mãe Maxsun eSport H810M WiFi ICE, Chipset H810, Intel LGA 1851, mATX, DDR5

Marca:
Maxsun

Modelo:
MS-eSport H810M WIFI ICE

Form Factor:
M-ATX (245 × 210 mm)

CPU Socket:
Intel® LGA1851, compatible with Intel® Core™

Ultra processors:
Chipset: Intel H810

Memory:
Slots: 2 x DIMM DDR5, up to 96GB in total
Dual Channel Support
XMP Memory Frequency Support:
6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz

Display:
1 x HDMI 2.0: Supports up to 4K@60Hz resolution
1× DP 1.2: Supports up to 4K@60Hz resolution

Expansion Slots:
1 x PCIe x16 Slot: Supports PCIe 5.0 x16 mode
1 x PCIe x1 Slot: Supports PCIe 4.0 x1 mode

Audio:
Integrated Realtek ALC897 Audio Chip

Network:
Integrated Realtek RTL8125D Ethernet Chip
Intel® AX101 Wireless: Supports Wi-Fi 6 and Bluetooth 5.2

Storage:
M.2 Slots:
1 x M.2 slot, PCIe 4.0 x4/x2, supports 2280 length
1x M.2 slot, PCIe 4.0 x2, supports 2280 length
2 x SATA 6Gb/s Ports

USB Ports:
Onboard USB:
1 x USB 5G 19Pin header, supporting 2 additional USB 5G ports
1 x USB 2.0 9Pin header, supporting 2 additional USB 2.0 ports

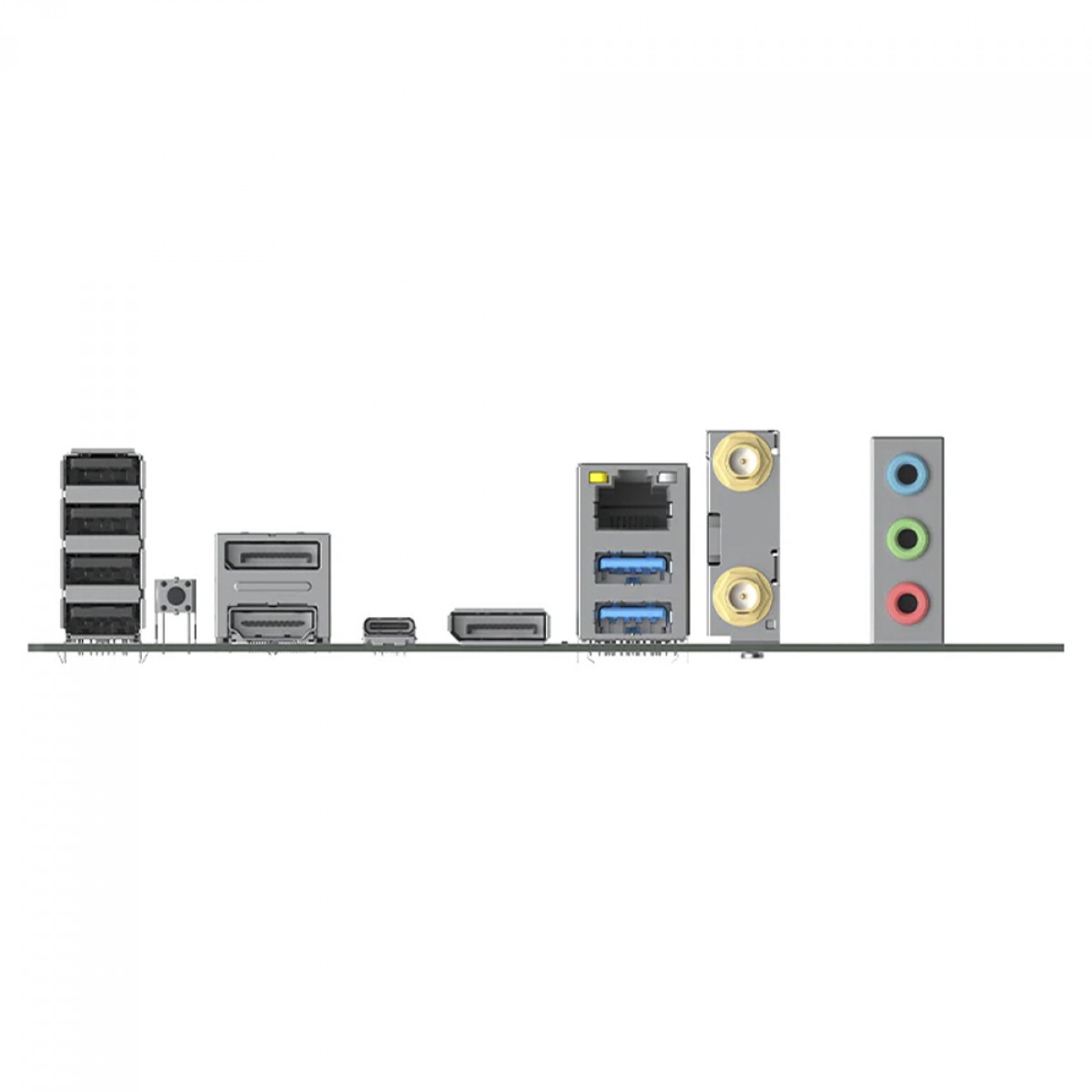

Rear USB:
2 × USB 5G Type-A ports; 4x USB 2.0 Type-A ports
1 x USB4 40G port, supporting 5V 2A output

Other Headers:
1 x 24Pin ATX power connector
1 x 8 Pin +12V power connector
2 x 3 Pin ARGB interfaces
1 x 4 Pin NRGB interface
1x COM port header-CLR_CMOS shortcut button
1 x 4 Pin CPU fan header
1x4 Pin PUMP header
2x4 Pin chassis fan headers
